What does a CCTV drainage survey establish?
A CCTV drainage survey uses closed-circuit television cameras to record the visible interior of accessible pipes. It documents observations such as damage, deposits and connections, tied to identified drainage runs. Its value lies in a traceable record: what was inspected, what was visible, what remains unknown and how the evidence supports the next decision.
The commissioning question matters. Investigating recurring deposits in a building network requires evidence about the operating problem. Assessing existing drainage before an infrastructure upgrade requires clear coverage, condition and unresolved risks. Preparing construction handover requires records in the recipient’s specified format. The same video alone may not answer all three briefs.
Planned maintenance can use a baseline survey to identify problem areas and compare later inspections. Pre-acquisition and refurbishment investigations can help establish the condition of accessible drains before commitments are made. Pre-construction records document what was visible before works, while handover inspections examine completed drainage against the agreed requirements. These are commissioning purposes, not guarantees of acceptance or future performance.
Define the network boundary: foul, surface-water or combined drainage; common estate infrastructure or individual tenant connections; selected problem runs or all accessible pipework. Include known outfalls, interceptors, pumping arrangements and inaccessible areas in the briefing, while agreeing which assets require separate assessment. A vague instruction to “survey the site drains” leaves too much room for different assumptions.
Inspection, cleaning, repair and mapping are different tasks. Unblocking restores a flow path; cleaning removes material; condition assessment interprets evidence; measured mapping establishes specified positions and levels. Commission the combination needed for the decision. A drain camera inspection does not automatically include all of them.
Push-rod or crawler: which equipment suits the network?
A drainage network can contain different pipe sizes, materials and access arrangements. Select the camera system for the inspection objective and the actual route. Tight bends, available openings, deposits, flow and run length can determine whether useful coverage is possible. A larger camera is not automatically a better choice.

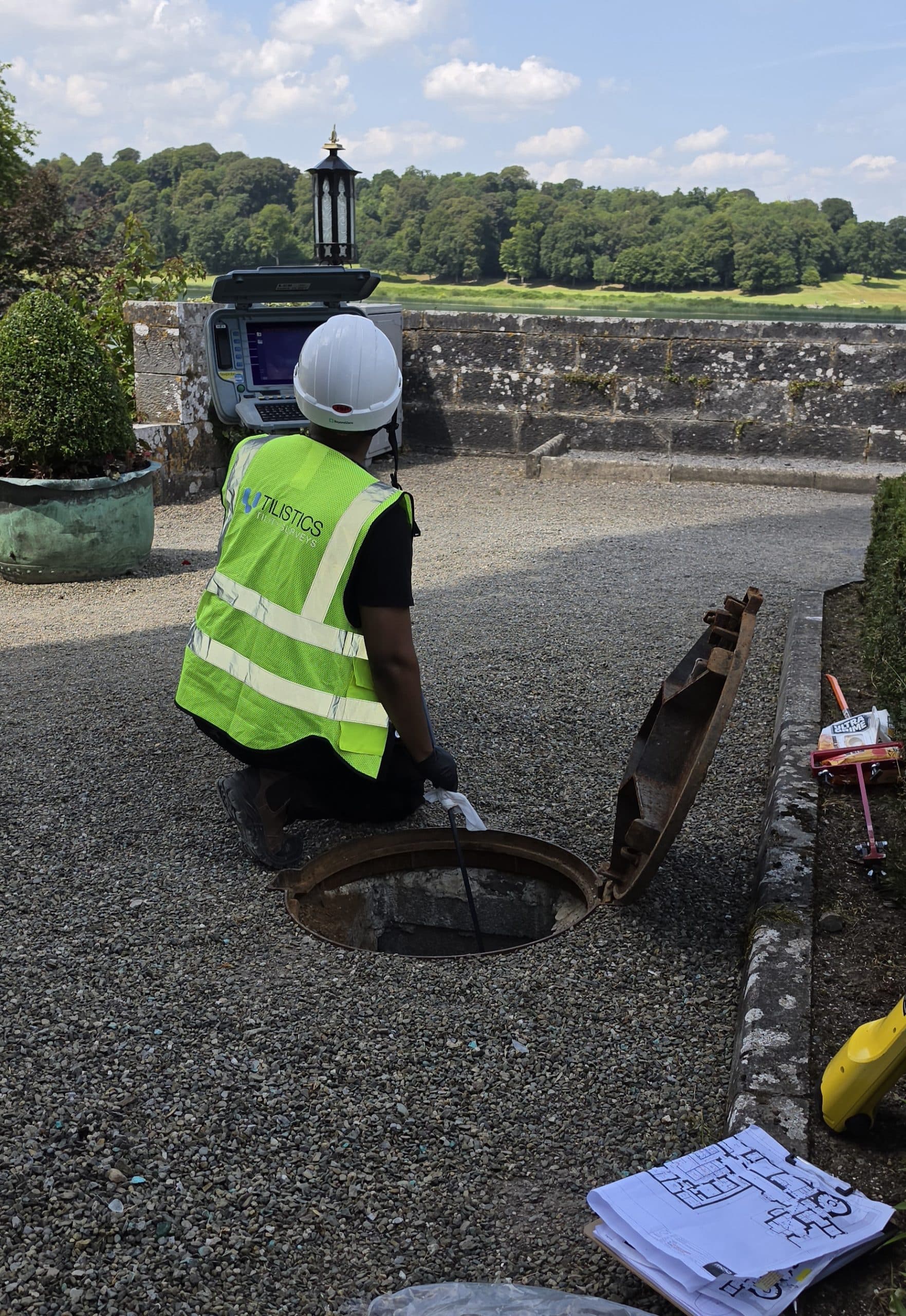

Push-rod systems advance a camera on a semi-rigid rod and can suit accessible smaller runs and branches. Crawler systems use a remotely controlled wheeled unit for compatible pipework; suitable entry, wheel configuration and a traversable route are essential. Minicam’s push-camera range and lateral-inspection crawler illustrate different arrangements, not a Utilistics equipment inventory. There is no universal diameter at which all surveys must switch between them.
The reel stores the push rod or crawler tether and supports controlled deployment and retrieval. The controller and monitor let the operator view the image, operate compatible camera functions and record the inspection. Lighting reveals the pipe surface; a pan-and-tilt head can examine joints and connections more closely. A distance counter records progress from a stated starting reference, while an optional sonde, a small transmitter, can support surface locating. RIDGID’s system manual illustrates these separate functions. None automatically turns the footage into a measured drainage drawing.
Ask how the proposed system will cover both main runs and branches, and what happens where a camera cannot pass. A clear equipment plan should include the likely limitations and any additional access or follow-up needed, rather than promise that one system will inspect every pipe.
Choose the system around the pipe
Push-rod camera
A camera on a semi-rigid rod, advanced from an access point.
Useful where a compatible camera can negotiate the pipe and bends; reach depends on the actual layout.
Crawler camera
A powered wheeled unit with a cable to the operator.
Selected for compatible larger pipework; wheel configuration, access, deposits and flow affect progress.
Pan-and-tilt head, lights and recording
A controllable head examines features; lighting and software support a traceable record.
Picture quality and recorded observations matter. A clear image of one area does not establish complete coverage.
Sonde, locator and survey control
A transmitter can help trace an accessible camera position from the surface.
Separate from footage chainage. Depth refers to the sonde and needs checks; mapped coordinates require a defined survey method.
These are equipment types, not a Utilistics equipment inventory. Manufacturer examples illustrate the capabilities and limitations discussed in the text.
How should the visit, access and jetting be planned?
Provide current drainage plans, earlier reports, maintenance records and the location of recurring problems. Identify busy loading areas, public routes, restricted compounds and working-hour constraints. Agree vehicle positions, access permissions, site induction and the person authorised to approve additional work. On a multi-tenant estate, arrange communication before the survey team arrives.
Consistent chamber and run references keep the inspection understandable. Reconcile existing labels before starting and record the direction of each survey. WinCan’s site-data guidance explains the importance of unique references and usable drawings. Without this link, good footage can be difficult to associate with the correct asset months later.
Clean before the survey, afterwards, or both?
The answer depends on the purpose. Deposits may prevent progress or hide the pipe wall, but immediate cleaning may remove evidence of a recurring operational problem. UKSTT’s CCTV guidance distinguishes observing an existing service problem from preparing a pipe for structural assessment. Agree whether initial observations are needed, what cleaning is suitable and whether inspection afterwards is required.
Consider a hypothetical distribution yard with repeated silt blockage: a useful brief might record the initial condition where practicable, arrange suitable removal, then inspect the exposed pipe. This separates evidence of deposition from evidence of underlying damage. It does not require forcing a camera into a blocked or unsafe run.
Jetting loosens and moves material; it does not repair cracks, displacement or deformation. Cleaning must suit the pipe and its condition. Wavin’s OsmaDrain manual provides product-specific restrictions on cleaning tools; it should not be treated as a universal pressure setting or method for every drainage network.
Allow for recovery, site operations and safe access
Jetting and vacuum recovery are different functions. KAISER’s sewer-cleaning explanation describes equipment that recovers material and can recycle water. Confirm removal and disposal arrangements, water requirements and who provides cleaning. A CCTV quotation should not silently assume that these activities are included.
Agree any temporary restrictions on drainage use with the site operator. Kitchens, washdown areas and continuously operating facilities may need coordinated inspection windows. Flow control or bypass arrangements, where necessary, require their own planning and scope. Do not assume a complete shutdown is inevitable or that unrestricted discharge will always be compatible with useful inspection.
Open chambers require a controlled work area. Site preparation should not involve staff lifting unsuitable covers or entering chambers. The HSA’s sewerage confined-space alert describes fatal atmosphere risks and the need to avoid entry where possible. Necessary entry requires a properly assessed system of work and rescue arrangements, separate from ordinary surface camera operation.
A survey is a sequence of decisions
Define the question
Agree the runs, access points, outputs and intended use of the report.
Check access and initial condition
Record relevant observations before cleaning changes the evidence, where safe and practicable.
Decide whether cleaning is needed
If visibility and access are sufficient, inspect. If deposits or blockage prevent useful inspection, assess a suitable cleaning method first.
Inspect and record coverage
Keep footage, observations and pipe references linked. Record where and why an inspection stops.
Assess and report
Explain observed condition, any grading method, uncertainty and the options for further investigation.
Agree the next action
Maintenance, testing, repair design or a return visit should follow the evidence and the client’s objective.
A commissioning overview, not instructions for operating cameras, jetting equipment or entering chambers.
What can the camera find, and what remains unknown?
Typical observations include cracks or fractures in the pipe wall; displaced joints, where adjacent lengths are offset; roots entering through openings; and deposits such as silt or grease that obscure or restrict the bore. Deformation means a change in the pipe’s cross-sectional shape. Infiltration is water entering through a defect or opening, where visible during the inspection. The US EPA’s condition-assessment review explains why observing these internal features is different from establishing the wider condition of the pipe and surrounding ground.
The report should distinguish observation from interpretation. Roots visible at a joint do not reveal their full extent outside the pipe. Standing water may justify checks of levels, flow or obstructions, but an ordinary video does not establish the exact gradient. No visible infiltration during the visit is not proof that the system is watertight.
Incomplete coverage is a finding in its own right
Water, deposits, inaccessible chambers, tight bends or blockages can leave surfaces and runs uninspected. Conventional CCTV does not establish external wall condition, bedding or surrounding ground. These limitations are described in the US EPA’s review of inspection technologies. The report should identify the inspected extent and the gaps, rather than treat the unseen network as sound.
A clear-looking pipe also does not prove that it has adequate capacity for proposed development or changed use. Hydraulic assessment and watertightness testing answer separate questions. Where gradients or profiles are needed, specify the method and accuracy; WinCan’s calibration guidance explains how sensor drift and wheel wear can affect inclination measurements.
Will the survey locate pipes and provide drainage drawings?
Only if those outputs are included. A compatible sonde and locator can help trace accessible positions, subject to site conditions and interference. Radiodetection’s depth guidance explains that a sonde reading refers to its centre; it is not automatically a pipe-cover or invert depth, and must not set mechanical digging depth.
Chainage is distance along the inspected run from its recorded starting reference; it is not a surveyed coordinate. A drawing should distinguish a sketch of observed connections from measured positions. Where measured information is required, agree chamber references, tracing, coordinates, pipe sizes, cover levels and invert levels (levels at the lowest internal point of the pipe), together with the coordinate system, vertical datum, accuracy and survey method. A visible branch opening does not by itself confirm where the branch leads or what it serves. Agree connectivity checks, tracing or other tests separately where that matters to the design.
For excavation or redevelopment, coordinate drainage information with the wider utility investigation before digging. A CCTV drainage survey does not locate every other buried service.
Recognise the observation, then assess it
Roots entering a joint
Roots can intrude through an opening and restrict the bore. The extent and surrounding condition still need assessment.
Displaced joint
Adjoining sections do not line up. The observation alone does not establish why they moved or whether the joint is watertight.
Cracking
A visible crack line can be recorded. Its wider structural significance depends on the full assessment.
Deposits and obstruction
Accumulated material can reduce the available space and obscure the wall. A further inspection may be needed after suitable cleaning.
Conceptual pipe sections, not survey footage or measured defects. Colours identify features only; they do not indicate condition grades, severity or a repair method.
Defect terminology: PUB Sewer CCTV Guidebook, Annex B. These drawings do not reproduce its grading table or apply Singapore requirements to Irish surveys.
What should a CCTV condition report contain?
A traceable inspection record identifies the site, survey date, chamber and run references, start point, direction, inspected length, and recorded pipe material and diameter. Video and still photographs should be linked to those references and to observation chainages, so a reviewer can find the relevant feature. Record cleaning status, flow and visibility limitations, plus where and why a run was stopped. InfoAsset’s CCTV data fields illustrate the structure behind such records.
Agree the deliverable set before the visit: footage, photographs, a coded observation report, any condition grades, a defect schedule, a coverage schedule and the required plan or measured drawings. The coverage schedule should distinguish completed, partially inspected and uninspected runs. Keep identifiers consistent across the PDF, video files, schedules and CAD/GIS data. Check that files open, chainages match, image quality supports the recorded observations and recommendations identify the evidence they rely on. A completed report is not proof of complete network coverage.
Codes, grades and priorities answer different questions
Observation coding describes what was seen in a consistent form. WRc’s condition-assessment explanation describes coding using the Manual of Sewer Condition Classification (MSCC5). A coded crack or joint observation is a record of evidence, not a repair instruction. Agree the required coding system, edition, assessment method and client specification, and confirm that the people recording and reviewing the inspection are competent for that scope.
Condition grading interprets recorded observations using a stated method. WinCan distinguishes MSCC coding from Sewer Risk Management (SRM) grading. Structural grading considers physical defects; service grading considers observations affecting operation. A damaged pipe may still pass flow, while heavy deposits can impair operation without equivalent visible structural damage. A service grade is not a calculation of hydraulic capacity. State the assessment method and the inspected extent behind the result.
An engineering recommendation asks what action the evidence justifies. A condition grade is not a universal repair deadline. Priorities also depend on what the pipe serves, consequences of failure, symptoms, planned works and confidence in the coverage. Recommendations should identify the relevant run and observation, distinguish maintenance from repair or further investigation, and explain uncertainty. For example, a defect beneath a critical access route may require different planning from a similar defect in an easily accessible area.
Irish construction and handover: check the applicable documents
Uisce Éireann’s developer technical-guidance page distinguishes connection applications received up to 15 February 2026 from those received from 16 February 2026. Confirm the applicable connection agreement, document edition and recipient requirements before commissioning. These requirements do not automatically apply to every maintenance survey of a private network.
For relevant self-lay development infrastructure, section 1.9 of CDS-5030-03, revision 3 addresses CCTV and manhole surveys before the defects liability period and Conformance Certificate. It specifies MSCC5 classification, SRM scoring, competent personnel and linked survey records. Allow for required notices, review and follow-up; booking a camera visit at the last moment may leave insufficient time to resolve incomplete inspections or defects.
Uisce Éireann also publishes IW-TEC-800-10 for sewer-pipe surveys undertaken on its behalf. This is a distinct specification. Obtain the project’s required outputs rather than assuming that any generic drain report will satisfy handover or adoption requirements.
Read the stopping point as carefully as the defect
A fictional extract for learning. No survey code, grade or measurement here comes from a real project.
Run and direction
Keep this direction with every observation. Reversing the survey changes its chainage reference.
Observation at 8.4 m
8.4 m is distance along the camera run from its stated zero. It is not an easting, a depth or a digging position.
Inspection stops at 12.6 m
The remaining route to Chamber B is uninspected. It cannot be described as clear or free of defects.
Next step
Confirm the safe method, remaining scope and separate location work before deciding on repairs.
The useful conclusion is “coverage is incomplete”, not “only one defect exists”.
What affects survey cost and programme?
A useful quotation starts with the question the survey must answer and the network it must cover. Compare expected runs and lengths, chamber access, equipment, preparation, operating restrictions, reporting and treatment of incomplete work. A lower headline figure may represent fewer outputs or different assumptions. Keep the same brief when comparing proposals.
Separate the base inspection from conditional items. Agree how additional cleaning, waste removal, traffic arrangements, inaccessible covers, extra runs and return visits will be authorised and priced. Confirm the VAT basis and whether measured drawings, specialised testing or repairs are excluded. The matrix below is a briefing tool, not a Utilistics price list.
Ask for two programmes: time on site and delivery of the checked report. Restricted inspection windows, interruptions from site operations, access problems and incomplete runs affect both. If the report supports a purchase, design freeze or handover milestone, explain that deadline and allow time for review and any follow-up investigation.
Compare the survey brief, not just the headline price
Use the same scope when inviting quotations. Ask which items are included, excluded or provisional; no fixed prices are assumed.
Network coverage
Foul, surface-water or combined; runs, branches and approximate lengths.
Sets the inspection extent and avoids treating a selected-run survey as full-site coverage.
Access and working windows
Chambers, covers, vehicle positions, permissions and operating restrictions.
Restricted access or short inspection windows can change site attendance and equipment arrangements.
Cleaning and recovery
Initial observations, jetting, vacuum recovery, disposal and re-inspection.
Inspection, cleaning and material removal are separate activities to price and coordinate.
Deliverables and assessment
Footage, coded report, executive summary, plan and required digital formats.
Review, reporting and recipient requirements affect the work beyond camera time.
Measured mapping and testing
Tracing, coordinates, levels, watertightness or other specialist assessment.
These outputs need defined methods and should not be assumed from a camera inspection alone.
Incomplete runs and additional work
Approval process, return visits, access works and any variation rates.
Makes the treatment of uncertainty visible before the survey starts.
Agree the inspected network, site attendance and reporting deliverables separately. Record how additional work and repeat visits will be authorised.
Turn the findings into a practical asset decision
Separate immediate operational action from planned investigation and longer-term maintenance. A deposit may justify a cleaning proposal; an inaccessible run may require access work and a return visit. An uncertain connection, level problem or suspected leak may need another test. Keep each action linked to its run reference and supporting evidence.
Depending on the defect and pipe, options may include local repair, lining or replacement. Uisce Éireann’s sewer rehabilitation programme gives examples of lining and associated repairs where appropriate. Their availability does not prove suitability for a particular collapse, geometry problem or capacity constraint. Ask what the proposed repair addresses and how completion will be checked.
For design and construction, relate the findings to proposed connections, levels, access and the works sequence. Where measured levels and surface context are needed, coordinate with a topographic survey. Condition evidence can inform whether existing pipework is retained, investigated further or considered for rehabilitation; hydraulic adequacy requires its own assessment. Keep the initial inspection, agreed actions, repair records and verification evidence together for handover and future maintenance.
Who owns the pipe, and who accepts the report?
Responsibility may involve an owner, tenant, management company or public network operator. Confirm asset boundaries and the relevant agreements; the location of a chamber alone does not settle ownership. Uisce Éireann’s pipe-responsibility guidance and blockage guidance explain why individual arrangements and the nature of the problem matter.
Confirm acceptance requirements directly with the intended recipient, whether a purchaser, engineer, insurer, landlord or adopting body. Ask for required coverage, coding, formats and any time limits. An older report can be useful evidence of previous condition, but later construction, repairs, incidents or changed use may limit its relevance.
CCTV drainage survey FAQs
How often should a drainage network be surveyed?
There is no single interval suitable for every site. Set the inspection programme around asset condition, blockage history, consequences of failure, maintenance evidence and planned works. Use a baseline to identify priority areas, then review the frequency as new evidence becomes available. Check any project, lease or asset-management requirements separately.
Can inspection proceed while the site remains operational?
Inspection can often be coordinated with continuing site activities, depending on chamber locations, vehicle routes, flow and the required coverage. Agree exclusion areas, access windows and any temporary drainage-use restrictions. An occupied building, construction site and continuously operating facility may need different arrangements. Any shutdown, isolation or bypass requirement needs a separately planned scope.
Will foul and surface-water drains both be inspected?
Only if both are included in the brief and accessible. Mark the intended networks and clarify branches, gullies, outfalls and shared connections. A survey of one system should not be presented as a complete assessment of the other. Additional tracing or testing may be needed where connections are uncertain.
Is jetting included, and will the survey repair defects?
Neither should be assumed. Confirm cleaning, debris recovery, disposal and post-cleaning inspection as separate scope items where needed. A camera records condition; it does not repair a fault. Agree repair design, execution and verification separately after the evidence has been reviewed.
What happens if the camera cannot complete a run?
The report should identify the stopping point, reason and uninspected extent. Options may include access from the other end, appropriate cleaning or separately agreed access works. Record unresolved coverage in the programme and quotation. A partial inspection does not establish the condition of the remaining pipe.
Can CCTV assess interceptors, tanks, pumps and treatment equipment?
An inspection of connected pipes does not automatically assess these assets, their operation or their compliance. List them in the briefing and commission the relevant specialist inspection, servicing or testing separately. The drainage report should be clear about what was included and excluded.
Will we receive footage and a report on the same day?
Agree delivery dates and formats before the visit. Initial findings can be discussed on site, but a checked coded report may need additional review. Establish how significant findings will be escalated before the final issue, who will receive the files and whether outstanding runs require a further visit.
Commission evidence that survives the site visit
A useful drainage survey leaves four things clear: the inspected extent, the observations, the unresolved questions and the next justified action. Before relying on the report, reconcile its run references with the footage and drawings, check the coverage gaps and distinguish measured information from interpretation. That turns a camera record into evidence that remains useful through maintenance, design, construction and handover.
